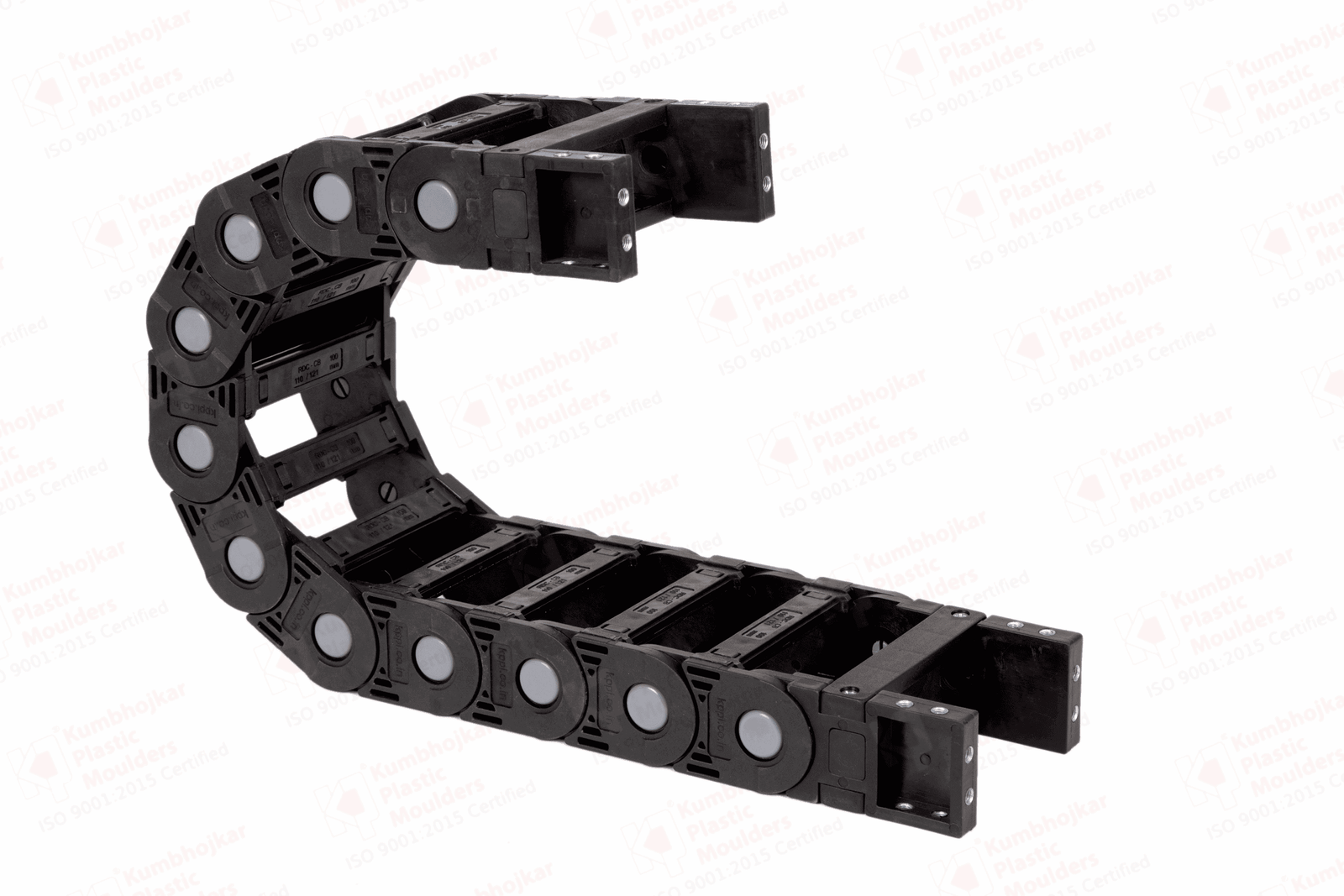

Cable Drag Chain - Kumbhojkar™ Plastic Moulders have been pioneers in designing, developing, and manufacturing Cable Drag Chains for both the Indian and global markets. Our systems provide a reliable solution for conveying cables and hoses in motion across various types of machinery, including NC, CNC, and robust cranes.
Salient features of Cable Drag Chain include less weight, low noise, non-conductive, easy handling, non-corrosive, ease of assembly due to snap fitting, maintenance free, available in custom lengths, separators to segregate cables/hoses, can be used side-by-side in case number of cables is more, increases cable/hoses life, modular design simplifies cable/hose maintenance.
Cable Drag Chain - Available Models and Sizes
| Model No. | Width-IW | Height-IH | Bending Radius |
|---|---|---|---|
| RDC_9.5x10 | 9 | 10 | 26.5 |
| RDC 16x10 | 16 | 10 | 28.5 |
| RDC 20x15 | 20 | 15 | 41 |
| RDC 30x19 | 30 | 19 | 47 |
| RDC_33x26 | 33 | 26 | 78 |
| RDC_45x26 | 45 | 26 | 78 |
| RDC_65x26 | 65 | 26 | 78 |
| RDC - 48 X 25 | 48 | 25 | 70 |
| RDC - 60 X 25 | 60 | 25 | 60 |
| RDC_80x38 | 80 | 38 | 105 |
| RDC_100x38 | 100 | 38 | 105 |
| RDC_100x45.BR150 | 100 | 45 | 150 |
| RDC_125x45.BR150 | 125 | 45 | 150 |
| RDC_150x45.BR150 | 150 | 45 | 150 |
| RDC_200x45.BR150 | 200 | 45 | 150 |
| RDC_100x45.BR200 | 100 | 45 | 200 |
| RDC_125x45.BR200 | 125 | 45 | 200 |
| RDC_150x45.BR200 | 150 | 45 | 200 |
| RDC_200x45.BR200 | 200 | 45 | 200 |
| RDC_S_40x25.BR55 | 40 | 25 | 80 |
| RDC_S_40x25.BR80 | 40 | 25 | 80 |
| RDC_S_52x25.BR55 | 52 | 25 | 80 |
| RDC_S_52x25.BR80 | 52 | 25 | 80 |
| RDC_S_65x25.BR55 | 65 | 25 | 80 |
| RDC_S_65x25.BR80 | 65 | 25 | 80 |
| RDC_S_78x25.BR55 | 78 | 25 | 80 |
| RDC_S_78x25.BR80 | 78 | 25 | 80 |
| RDC-200x56.BR200 | 200 | 56 | 200 |
| RDC-225x56.BR200 | 225 | 56 | 200 |
Applications of Cable Drag Chain
Cable Drag chains are used to guide, support and protect the Electric cables, hoses and hydraulic lines when in motion. Without drag chains, the potential for these to become tangled or damaged would be high.
- Port Cranes.
- Green energy systems.
- Machine tools.
- Process and automation equipment.
- Vehicle transporters and washing systems.
- Robotics.
FAQ's - Cable Drag Chain / Cable Carrier System
A cable drag chain or cable carrier, drag chain or energy chain, is a protective mechanical system to direct and support a moving electric cable or hose that is moved back and forth with the machinery. The drive is attached to this polymer chain and the cable is passed through them. The chain absorbs all the forces in motion, and prevents the cable from becoming tangled, bent or prematurely worn out, to operate smoothly and safely in dynamic conditions.
Choosing the appropriate cable drag chain is dependent on the various factors such as the nature and quantity of cables or hoses, required bending radius, travel distance, operating speed, load factors and working environment. We have varying cable drag chain sizes and configurations at Kumbhojkar Plastics, which are catered to applications of light-duty to heavy-duty uses. Our machine analysis department evaluates your machine needs and prescribes the best drag chain which will last longer, move the cables easily and perform efficiently.
Cable drag chains are manufactured using high quality industrial grade glass reinforced engineering polymers, which have outstanding resistance against wear, chemicals and high temperatures. Such materials assure longevity of service even in harsh industrial environments..
Yes, cable drag chains may be designed to fit your specific application needs. We have a variety of models of different sizes to fit various loads, travel lengths, bending radii and operating environment. You may require a small drag chain to fit into the tight space or a heavy duty cable carrier to meet the high performance and prolonged service in the demanding industrial environment, our staff can steer you to the right cable drag chain in our large product line to achieve maximum performance and extended life.
Our drag chains are utilized in most industries CNC machining, robotics, automation, packaging and material handling, 3D printers, Laser cutting and Laser Engraving machines, cranes and elevators - any moving system requiring cables or hoses to be guided.
Cable Drag Chain is available in types of Kumbhojkar Plastics we provide open type drag chains and cables easily inserted. We also have Snap open type drag chains whereby top or bottom chain links can easily be removed and replaced with cables/ hoses so as to save the time of installation. The other one is Cross bar links that once again provide the same benefits to snap open with enhanced strength to long travel and heavy duty.
