Cable Drag Chain / Cable Carrier System

Kumbhojkar™ Plastic Moulders have been pioneers in designing, developing, and manufacturing Cable Drag Chains for both the Indian and global markets. Our systems provide a reliable solution for conveying cables and hoses in motion across various types of machinery, including NC, CNC, and robust cranes. Some of our innovative designs are registered with the Government of India Patent Office, underscoring our commitment to delivering cutting-edge solutions for industrial applications.

Cable Drag Chain, Cable Carrier, Drag Chain Conveyor, Cable Track, Round Cable Drag Chain

Advantage Cable Drag Chain - The hoses & electrical cables connected to machinery parts in motion may get damaged as direct tension is applied on them; instead the use of Drag Chain eliminates this problem as the tension is applied on Drag Chain thus keeping the Cables & hoses intact & facilitating smooth movement.

Salient features include less weight, low noise, non-conductive, easy handling, non-corrosive, easy of assembly due to snap fitting, maintenance free, available in custom lengths, separators to segregate cables/hoses, can be used for side by side in case number of cables is more, increases cable/hoses life, modular design simplifies cable/hose maintenance.

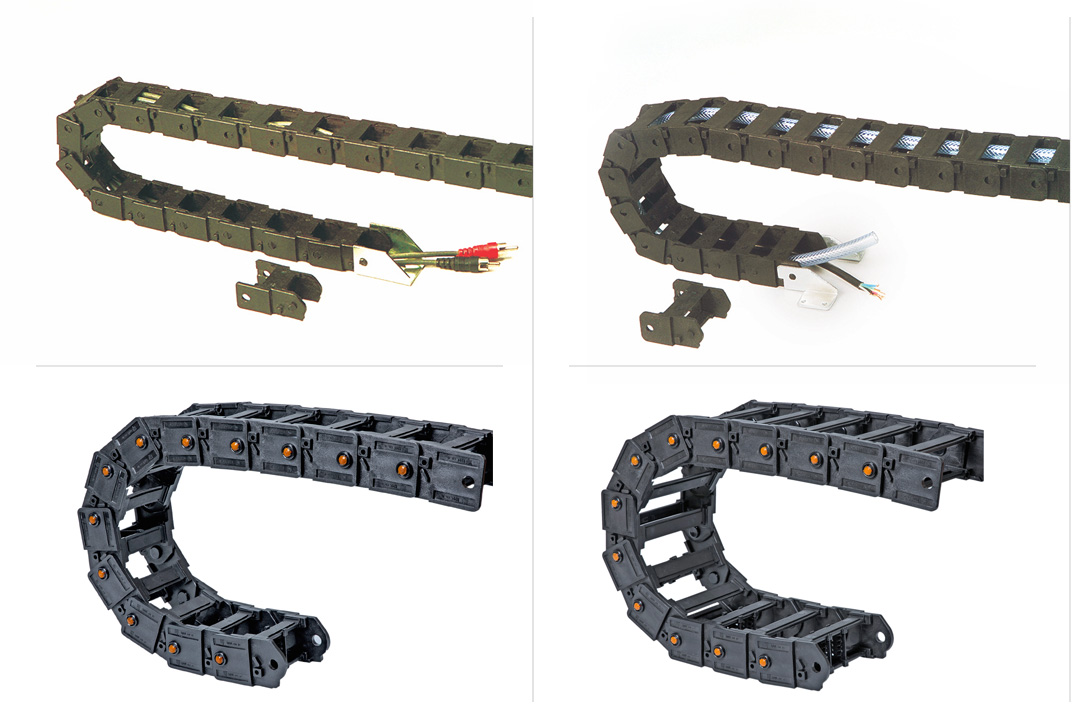

The Cable Drag Chain is assemblies of single units that are snap fitted to form chain to specific length.

Cable Drag Chain - Available Models and Sizes

Model No. Width-IW Height-IH Bending Radius
RDC_9.5x10 9 10 26.5
RDC 16x10 16 10 28.5
RDC 20x15 20 15 41
RDC 30x19 30 19 47
RDC_33x26 33 26 78
RDC_45x26 45 26 78
RDC_65x26 65 26 78
RDC - 48 X 25 48 25 70
RDC - 60 X 25 60 25 60
RDC_80x38 80 38 105
RDC_100x38 100 38 105

RDC_100x45.BR150   100 45 150
RDC_125x45. BR150  125 45 150
RDC_150x45. BR150  150 45 150
RDC_200x45. BR150  200 45 150

RDC_100x45 BR.200 100 45 200
RDC_125x45.BR200 125 45 200
RDC_150x45.BR200 150 45 200
RDC_200x45.BR200 200 45 200

RDC_S_40x25.BR55 40 25 80
RDC_S_40x25.BR80 40 25 80
RDC_S_52x25.BR55 52 25 80
RDC_S_52x25.BR80 52 25 80
RDC_S_65x25.BR55 65 25 80
RDC_S_65x25.BR80 65 25 80
RDC_S_78x25.BR55 78 25 80
RDC_S_78x25.BR80 78 25 80

RDC-200x56.BR200 200 56 200
RDC-225x56.BR200 225 56 200

Applications of Cable Drag Chain

Cable Drag chains are used to guide, support and protect the Electric cables, hoses and hydraulic lines when in motion. Without drag chains, the potential for these to become tangled or damaged would be high. Therefore, drag chains help to extend the life of cables, hoses and hydraulic lines etc. Drag chain are particularly for flexible use, e.g. control or data cables in drag chains. Drag Chains permit flexible or linear movement of the cables.

Applications :

  • Port Cranes.
  • Green energy systems.
  • Machine tools.
  • Process and automation equipment.
  • Vehicle transporters and washing systems.
  • Robotics.

Cable Drag Chain Videos

Cable Drag Chain Assembly

Cable Drag Chain Assembly

Cable Drag Chain Assembly – RDC 80x45, RDC 100x60

Cable Drag Chain Assembly – RDC 130x66 Snap Open on One Side or Snap Open on Both Sides

RDC Snap 80x45 with option of 2 Bending Radius
